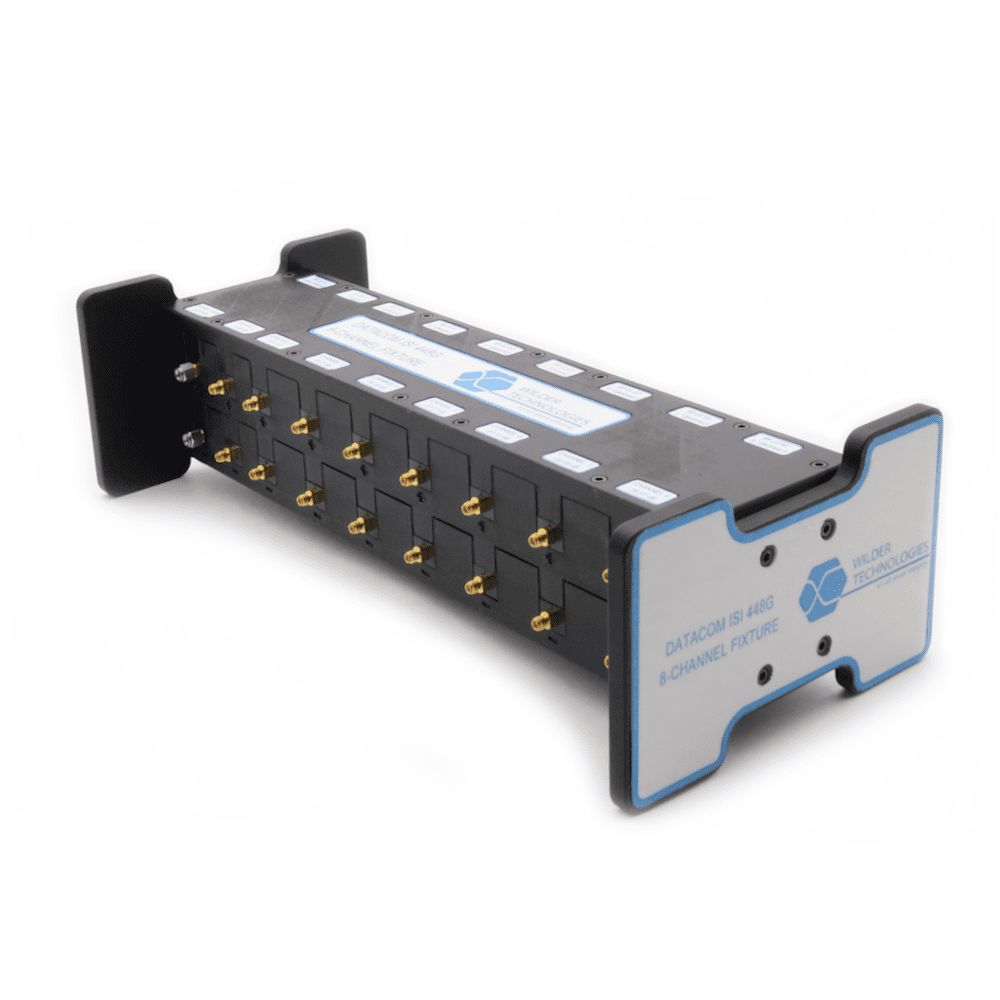

Wilder Technologies is the first vendor to introduce the complete set of Compliance Test Fixtures for characterization measurements and conformance testing to the next generation 1.6 Tb/s Standards under development in IEEE 802.3dj, OIF CEI-224G, and Fibre Channel PI-9. The full offering includes Host Compliance Boards and Module Compliance Boards in both OSFP and QSFP-DD form factors, along with an ISI channel fixture offering a selection of differential loss traces for channel emulation and stressed receiver input stress calibration. The fixture set provides best in class performance beyond 60 GHz to support lane rates up to 58 GBaud PAM4 signaling used in 1.6T applications. CMIS_GUI Software provides: Displays of many of the settings and Controls in the Module including Lane States, Module Power States and Optical Power. Alarms and Warnings for Module Temp and Vcc and Optical Power Controls for Module Power, Margins, and read access to Descriptors and Data Path Configuration. Direct Read/Write access to the I2C and CMIS Memory Map as well Scripts that directly access the CMIS Memory Map Registers.
