PCIe
Our latest PCIe G5 M.2 Socket3 CLB and CBB enables pre-Compliance testing while maintaining compatibility with PCIe CEM Set via use of MMPX connectors.
PCIe
U.2
The PCIe Gen5 U.2 test adapter or test fixture kit facilitates Device and Host compliance testing for PCIe Gen5 U.2 Source and Sink devices.
Shop U.2
PCIe
M.2 Gen5 Socket3 CLB and CBB
Our latest PCIe G5 M.2 Socket 3 CLB and CBB enables pre-Compliance testing while maintaining compatibility with PCIe CEM set via use of MMPX connectors. It includes CMTS as well as adapter cables.
Shop M.2 Gen5 Socket3 CLB and CBB
PCIe
M.2 Gen4 Socket2

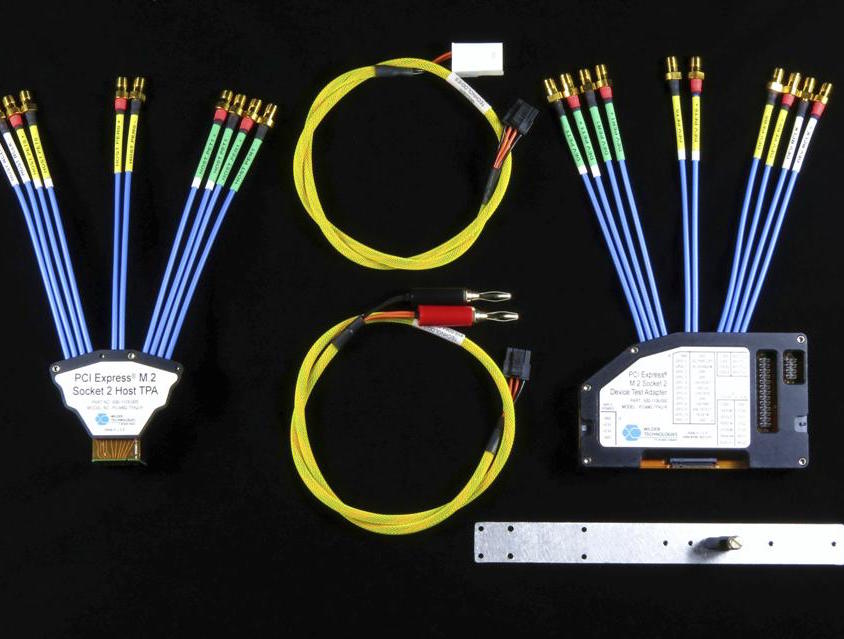

The PCIe Gen4 M.2 Socket 2 test adapter or test fixture kit facilitates Device and Host compliance testing for PCIe Gen4 M.2 Socket 2 Source and Sink devices.
Shop M.2 Gen4 Socket2
PCIe
M.2 Gen4 Socket3
The PCIe Gen4 M.2 Socket 3 test adapter or test fixture kit facilitates Device and Host compliance testing for PCIe Gen4 M.2 Socket 3 Source and Sink devices.
Shop M.2 Gen4 Socket3
PCIe
SFF 8639 Gen4 (U.2)
The 8639G4-TPA-PR test adapter or test fixture kit facilitates Source and Sink compliance testing for SFF-Hosts and Devices. These SFF-8639 Gen4 fixtures utilize the multifunctional connector system supporting single/dual port SATA, dual and MultiLink SAS, and/or up to four (4) port PCIe device configurations. The SFF-8639 Gen4 receptacle fixture will accept devices with plug connectors that are in accordance with SFF-8482, SFF-8630, and SFF-8680.
Shop SFF 8639 Gen4 (U.2)Resources
User Manual & Specs
Mechanical Drawings
- PCIe Gen5 M2 Socket3 CLB1
- PCIe Gen5 M2 Socket3 CLB2
- PCIe Gen5 M2 Socket3 CLB Replica Channel
- PCIe Gen5 M2 Socket3 CMTS
- PCIe Gen5 M2 Socket3 CBB
- PCIe Gen4 M2 Socket2 Plug
- PCIe Gen4 M2 Socket2 Receptacle
- PCIe Gen4 U2 SFF-8639 Plug
- PCIe Gen4 M2 Socket3 Receptacle
- PCIe Gen4 U2 Gen4 SFF-8639 Receptacle
- PCIe Gen4 M2 Socket3 Plug
